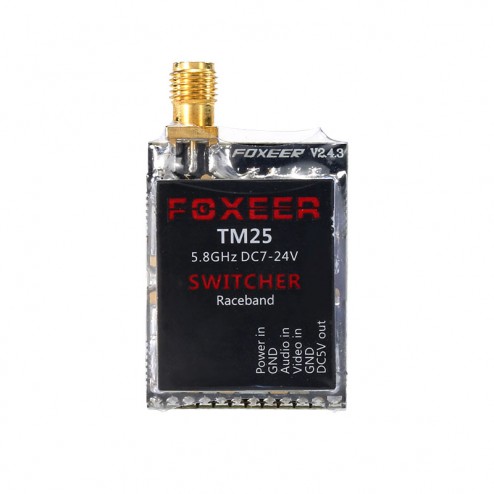

Foxeer TM25 5.8G 40CH 600mw FPV transmitter
Features:
Small size, low weight.
Brand new and high quality.
Imported high-quality components, professional circuit design.
Quick channel switch: Abandon traditional DIP, adopt key LED display, visual operation, more convenient.
Foxeer TM25 Switcher 5.8G 25/200/600mW adjustable VTx, supports 40 channel including race band, good capacity of anti-interference, can change frequency/channel/power only by the button, very easy operation.
Specifications:
Model: TM25 Switcher
Video format: NTSC/PAL
Output impedance: 50 ohm
Output power: 25/200/600mw
Input voltage: DC 7-24V
Output voltage: DC 5V
Operating temperature: -10~85℃
Video band width: 0-8.0mhz
Audio carrier frequency: 6.5mhz
Video input level: 0.8-1.2Vp-p
Audio input level: 0.5-2.0Vp-p
Audio input impedence: 10k ohm
Connector type : SMA
Size(Length/Width): About 33 * 25mm (43mm if antenna connector is included)
Weight: 10g
