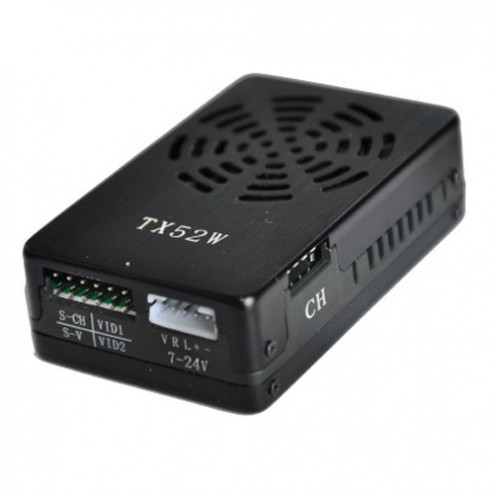

FPV 5.8G 8CH 2000mW High Power A/V Transmitter (TX) TX52W | SMA, jack
Modulate: Wideband FM modulate
- Video format: NTSC/PAL
- Output impedance: 50ohm
- Output power: 33dBm
- Operating voltage: 7.0-24V
- Supply current: 1500mA
- Operating temperature: -10~85?°C
- Video band width: 0-8.0Mhz
- Audio carrier frequency: 6.5MHz
- Video input level: 0.8-1.2Vp-p
- Video input impedance: 75ohm
- Audio input level: 0.5-2.0Vp-p
- Audio input impedance: 10K ohm
- Dimensions: 78*42*20mm
Channel Frequency:
Video format supported: NTSC/PAL
Antenna connection: SMA, jack (module side )
Power input: 12V (3S Lipo suggested)
Video output ports number: 2
Weight: 80g
Antenna connection: SMA, jack (module side )
Power input: 12V (3S Lipo suggested)
Video output ports number: 2
Weight: 80g
Modulate: Wideband FM modulate
- Video format: NTSC/PAL
- Output impedance: 50ohm
- Output power: 33dBm
- Operating voltage: 7.0-24V
- Supply current: 1500mA
- Operating temperature: -10~85?°C
- Video band width: 0-8.0Mhz
- Audio carrier frequency: 6.5MHz
- Video input level: 0.8-1.2Vp-p
- Video input impedance: 75ohm
- Audio input level: 0.5-2.0Vp-p
- Audio input impedance: 10K ohm
- Dimensions: 78*42*20mm
Channel Frequency:
- CH1: 5705MHz
- CH2: 5685MHz
- CH3: 5665MHz
- CH4: 5645MHz
- CH5: 5885MHz
- CH6: 5905MHz
- CH7: 5925MHz
- CH8: 5945Mhz
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | skyzone |
|---|
