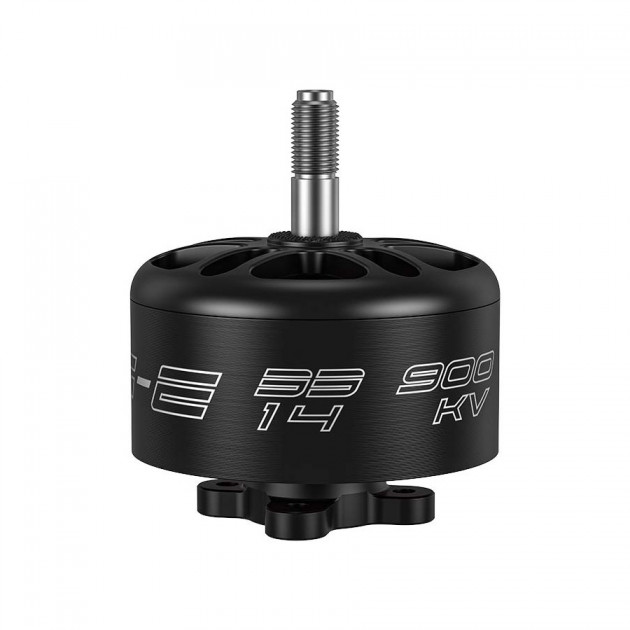

موتور براشلس xing 3314/900 kv

• Model: XING-E 3314 Motor
• KV: 900KV
• Weight(included wire): 120g
• Dimension: φ38.6*29.8mm
• Interphase Resistance: 48.1mΩ
• Input Volts: 24V
• Peak Current: 58.48A
• Max Watt: 1366.1W
• Mounting Holes: 19*19 φ3mm
• Shaft Diameter: 5mm
• Shaft Protruding Length: 15mm
• Lead: 400mm/16AWG
• Magnet: N52H Curved
• Configuration: 12N14P
• Bearing Specification: φ11*φ5*5
• Winding: Single Strand copper winding
