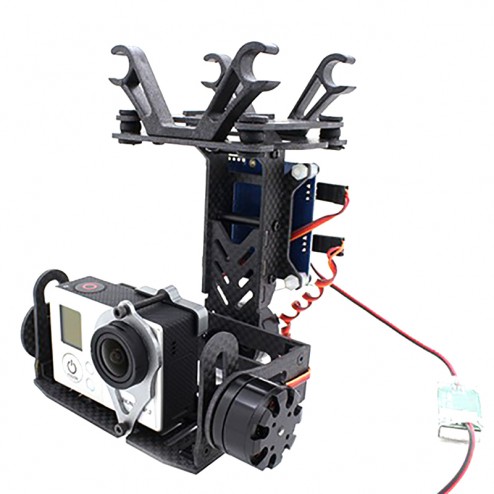

ACK GoPro Brushless Gimbal is a turn-key solution for those looking for smooth, stabilized, jello free video from their GoPro and multi-rotor combination. The direct drive AXN 2206 brushless motor provides instantaneous response to any disturbance on both roll and pitch up to a whopping 80 degrees of tilt. The gimbals 3k Carbon board assembly ensures a strong but lightweight construction, so longer flying time can be achieved. The gimbal has two mounting options included “hook and rod” and direct upper plate mounting, so it’s as plug and play as it gets.
The ACK Brushless Gimbal is assembled, adjusted and tuned for the GoPro 3 before shipping out, however the GoPro lens ring can be removed and the gimbal has full balance adjustments to use with other cameras in the 100-300gram range.
Features:
• Direct drive of Brushless Motors for both Roll and Pitch axis
• Made of 4*3K 2.0mm half Carbon Fiber Board which is light and strong
• Steady performance with high quality Rubber Tension Damper Balls
• Designed especially for Gopro Hero 3 camera
• Controllable Roll Axis Movement with Max. 80 Degrees of freedom
• Assembled, adjusted and tuned before shipping
• Voltage regulator included
• Pre-tuned controller included
Specs:
Movement: 2-axis, Roll and Pitch
Controllable axis: Pitch +-90 Degree, Roll +-80 Degree
Working Voltage: 8-9V (includes a voltage regulator for 3s or 4s Li-Po battery)
Gimbal Controller Board Weight: 20g
GM-2206 motor Weight: 32.5g
ACK Brushless Gimbal Frame weight: 124g
Total weight of Gimbal body, Gimbal Controller board and 2 pieces of GM-2206 motors: 209g
Hook and rod Mount: 60mm center to center 10mm rod
