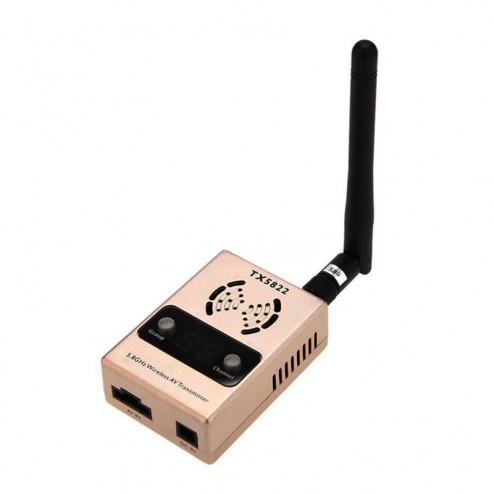

Boscom TX-5822 5.8g 32CH 2200mW FPV Wireless A/V Transmitter
Working frequency: ISM 5.8GHz;
Available Channel: 32 channel;
A: 5865 5845 5825 5805 5785 5765 5745 5725MHz;
B: 5733 5752 5771 5790 5809 5828 5847 5866MHz;
C: 5705 5685 5665 5645 5885 5905 5925 5945MHz;
D: 5740 5760 5780 5800 5820 5840 5860 5880MHz;
Power Supply: DC +7V~+24V;
Antenna Gain: 3dB;
Video Output Level: 1.0Vp~p Typ/75;
Audio Output Level: 1.0Vp~p Typ/10K;
Video System: Auto;
Dimensions (L x W x H): 60 x 42 x 25mm;
Weight: 60g;
Features:
A: 32 channel;
B: RF Power High, firing distance;
C: High brightness LED display;
2200mW RF Power output High brightness LED display Not affect by 2.4GHz R/C Radios Antenna connector: RP-SMA (hole inside) Small size, light weight, easy to carry DC in: 7~24V; Size: 58 x 40 x 20mm
General |
Brand |
BOSCAM |
Model |
TX5822 |
Form Color |
Wheat + Black |
Material |
Aluminum + plastic |
Quantity |
1 piece |
Specification |
Compatible Model |
5.8GHz Receiver Monitor |
Dimensions & Weight |
Dimensions |
2.36 in x 1.57 in x 0.98 in (6 cm x 4 cm x 2.5 cm) |
Weight |
2.12 oz (60 g) |
Packing List |
1 x TX5822 Transmitter 1 x Power in / GND Cable (25cm) 1 x Audio / Video / Power out Cable (21cm) |
