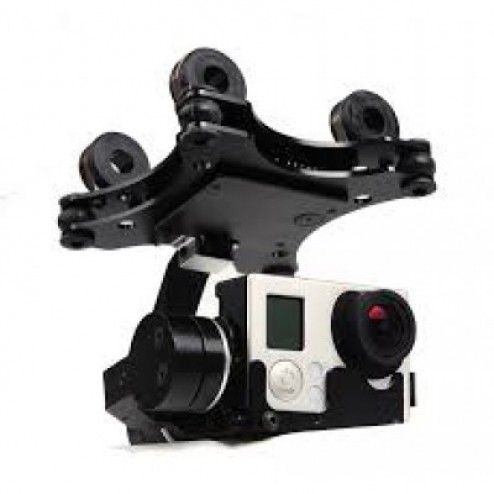

The X-CAM A10-3H Gimbal it at the top of the list when it comes to gimbals, the A10 has True continuous rotation 3-Axis ability with A/V Video link transfer. Full control over Roll, Tilt, Yaw, Mode and Zero home. And charging with A/V out transfer for the GoPro hero camera.
There are a lot of 3 Axis gimbals on the market, but only a few that use a slipper for true 360Deg continues rotation and also transfers the A/V output from the GoPro to the top controller for VTX use. The A/V line also powers/charges the GoPro. Another key feature on the X-CAM is its ability to go to zero or home using referencing sensors, this is great for when transitioning from a yaw control to a forward flight mode the gimbal will auto go to the front position.
The A10 uses an advanced method of vibration control and mounting and is a full CNC aluminum frame design with integrated motors for a light 280g weight.
If you’re serious about some aerial Photography with a GoPro this is the gimbal for you
Features:
• Continuous 360deg rotation
• A/V transfer cable with power
• 5 chs of adjustment over Sbus
• Sbus and PPM support
• Home sensors
• GUI and Upgrade ability
• Wide input voltage range
• Aluminum constructionSpecs:
Weight: 280g ( without GOPRO )
Stabilization frequency: 5200Hz
Input voltage: 7.4v ~ 16.8v ( 2S ~ 4S Lipo )
Tilt travel: +-90 degree; Roll travel: +-45 degree
YAW travel: 360 degrees unlimited rotation
