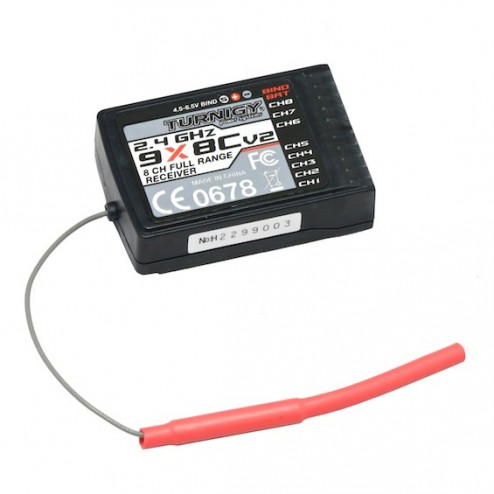

The 9X8Cv2 is the recommended receiver for the very popular Turnigy 9X (V2) transmitter. It's a 2.4GHz full range receiver and features 8 controllable channels.
Bind plug included.
9X Binding Procedure:
Ensure that TX modulation is set to PPM. The RX will not bind if TX is in PCM.
Plug bind plug into the receiver position labeled 'BAT'.
Plug battery to any slot. Red LED blinks ready to bind.
Push and hold "bind range test" button on TX while switching it on.
Keep pressed until red LED is steady on RX.
Remove bind plug from receiver.
Turn off RX first and then TX.
Plug power supply into 'BAT' slot.
Turn on TX first and then RX. Test using a servo.
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | Turnigy |
|---|
