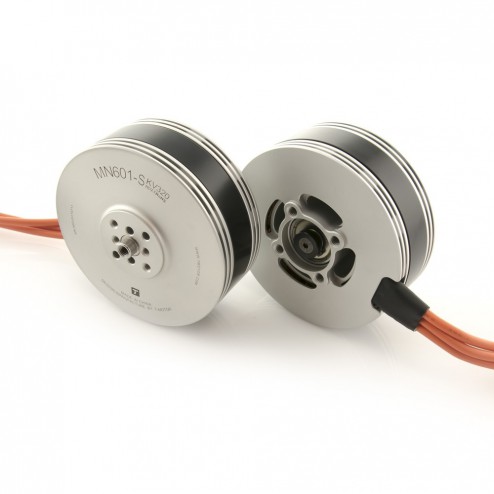

The new generation of Navigator MN motors are specially designed for industrial drone applications. The new completely enclosed design maintains the lightness of the Navigator MN motors, giving extra winding protection. The water resistance has IP55, which guarantees a correct operation in adverse environments.
The bearings, are Japanese EZO brand, along with mechanically balanced bell, ensure optimal performance and minimal vibration. This is very important in multi-rotors that with aerial cameras.
Specifications
KV: 320
Configuration: 24N22P
Motor Dimensions(Dia.*Len): Φ68.8×35.4mm
Shaft diameter: inner 6mm , out 4mm
Weight(g): 246g
ldle current(10)@10v(A): 1.6A
No.of Cells(Lipo): 6S
IP: IP55
Max Continuous current(A)180S: 50A
Max Continuous Power(W)180S: 1200W
Internal Resistance: 420mΩ
ESC: Flame 70A
Prop: 20 ~ 21 inch
Silicon Wire: 16AWG 150mm
Includes
2x Tmotor MN601S 320KV
8x M3x8 Screw
8x M4x12 Screw
2x Prop cover
