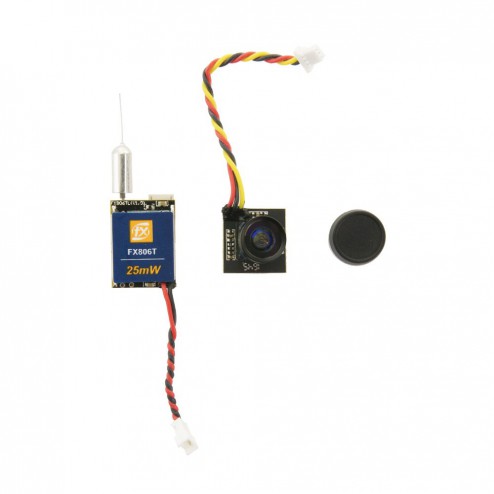

FXT FX806T Micro Vtx and Camera
The smallest FPV camera yet! For those extremely small and light-weight builds. With detached VTX that allows for easier placement of the components on to really tight spaces. Perfect for your modified TinyWhoops and smaller!
To change channels single press channel button. The channel LED always keeps red for 1st channel of any band, for other channels, channel LED OFF. To change frequency press and hold the channel button for 2 seconds.
Specifications:
- Super small and lightweight
- Detachable camera vtx design
- Power by 1S lipo battery
- With dipole whip antenna
- Power off memory function: restart as the very last channel kept before power off
- Button control instead of switch
- Easy to install, plug and play
Camera:
- Model Number-V60T
- Power supply 3.7-5V
- Current consumption 60mA
- Resolution 600TVL
- FOV 120 degree
- Video format NTSC
- Mini illumination 1.0 lux
- Dimension 14x14mm
- Weight 2g
Video Transmitter:
- Model number FX806T
- Power supply 2.5-5V
- 150mA@3.7V,110mA@5V
- Working frequency 5.8GHz
- Output power 25mW
- Channel 40 channels with Raceband
- Video band width 6.0MHz
- Antenna dipole whip antenna or other antenna
- Dimension 19x14mm
