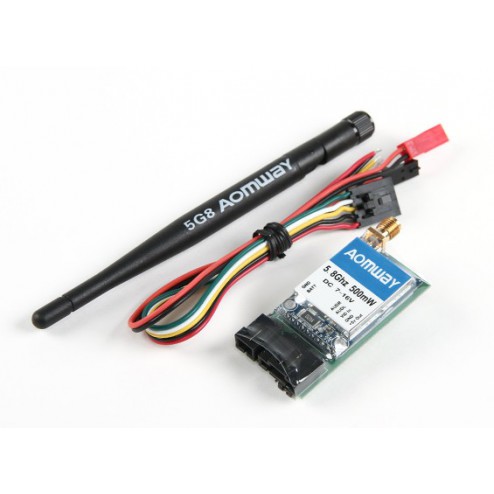

The Aomway 5.8G 500mW Transmitter is perfect for those that are looking for a high power output set, ideal for long range FPV work in one easy to use package.
The video transmitter packs 500mW of ultra clean 5.8GHz power in a conveniently sized video/audio package! Adjustable frequency selection and a selectable 5 or 12 Volt camera power output makes this a must have for those looking for transmitter with good performance.
Note: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Note: For best range and video link stability we recommend using a circular-polarized Antenna (SMA) available below in the accessory’s tab
Features:
• Upgraded video circuit and sensitivity, with 500mW telemetry
• Blue semi - transparent shell, more convenient for use
• 5.8GHz band FM audio/video transmit synchro
• Stereo, left/right audio channel independent transmission
Specs:
Low consumption: 12V 700mA
Power: 500mW/30dBm
Frequency: 15CH, CH1-7, +CH1-8
Built-in two emission frequency: 5740-5860MHz/5705-5945MHz
Format: NTSC/PAL
Wide input voltage: DC7-16V
Output Voltage for CMOS camera operation: 5V or 12V (switch through jumper)
Current: 12V 230mA
Antenna Connection: SMA
Size: 56x27x12mm
Weight: 17g
Package Includes:
One 500mW Transmitter
Oneo 3db Antenna
One Video cable
