Tarot Z25 Folder arm mount /B TL25A1
Product Description:
·Suitable for use with 4/6/8-axis multi-rotor drones with tube diameter Φ25MM
·Adopt button type unlocking, one button unlocking automatic folding
·Easy and simple to use, easy to put away
·The locking mechanism can automatically lock the function in one direction according to the vibration of the arm.
·Unique folding mount waterproof sealing baffle design
·No more worries about waterproofing (the edges need to be coated with waterproof adhesive), which meets the needs of industrial drones
·Made of 6061-T6 aluminum alloy super hard aluminum alloy, high precision multi-axis CNC machining
·X4Ⅱ/X6Ⅱ/X8Ⅱ frame can be installed directly
Related Product Number:
Z25 Folding Machine Arm Mount/mute Black TL25A1
T25 folding machine arm holder/6 degree tilt TL25A2
Z28 waterproof folding machine arm holder/mute black TL28A1
T28 waterproof folding machine arm holder/6 degree tilt TL28A2
Z30 waterproof folding machine arm holder/mute black TL30A1
Z28/Z30 metal connecting plate TL28A3

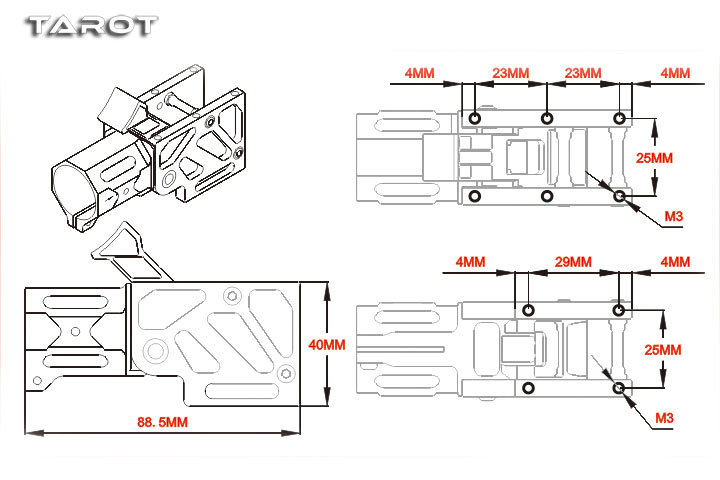

Product Specifications:
Metal left support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
Metal right support plate×1（54.5×40×5.5MM）15.0G
M3.0×5MM step socket screws×8
M2×4MM cup head socket screws×4
Φ4×26MM spring×2
H5×22.5MM hexagonal aluminum post×2
M2.5×5MM cup head hexagon socket screws×4
Unlock slider×1（66×16×21.5MM）6.2G
Self-locking brass column×1（Φ6×27MM）5.8G
Φ25MM metal arm tube clamp×1（58×30×35MM）24.8G
Φ6×28.5MM positioning pin×1（Φ7×37.5MM）6.1G
M3.0×6MM half-round head socket screw×1
M3 metal gasket×1
