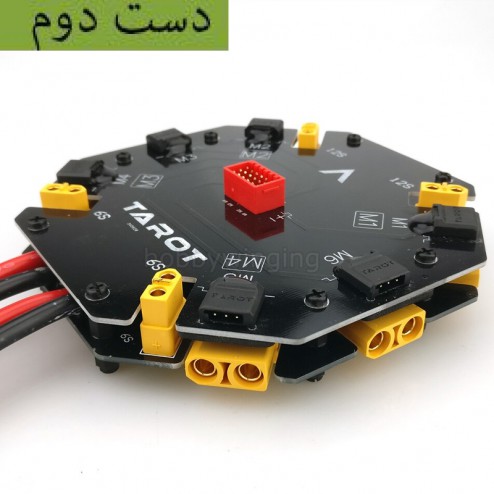

TAROT Power ESC Distribution Board Signal Hub for X6 Hexacopter Drone TL6X002
Product description:
This board is designed to simplify the wiring of hexacopter and help keep it organized. It takes care of both power distribution and ESC signal wiring all in one neat package.
It features six ESC signal inputs labeled M1 to M6. The connections are outputted together respectively at the signal hub, ready for you to connect with your flight controller*. On the power distribution side of things, the board has six coaxial power ports to power your ESC’s and a couple of XT30 connectors to power auxiliary devices like UBECs and FPV gear.
The board comes completes with a full wiring harness. It comes with six coaxial power cables and six signal wires, ready for you to solder to your ESC's and then plug straight into the board. The cables are long; 66cm and 42cm respectively, so they have enough length if you prefer to mount your ESC’s under the motors away from the main frame. The package also comes with high current 10AWG power leads soldered to a 7mm gold plated Amass AS150 anti-spark battery connector. Finally, a foam adhesive pad is included which should be stuck to the back of the board to insulate it from your frame.
*Important: The signal hub does not have a positive connection, only signal and ground connections.
Product Specification:
- ESC Signal Connections: 6 connection ports
- ESC Power Connections: 6 coaxial power ports
- Auxiliary Power Outputs: 2 female XT30 connections
- Battery Connection: Amass AS150 7mm anti spark connector
- Size: 97 x 93 x 17mm
- Mount Holes: 4x M3
- Weight: 71g main board / 285g including wiring harness
Product Use for:
Hexacopter
Included:
- 1x Octocopter PDB Signal Hub
- 6x ESC Coaxial Power Cable (TL8X004) - 66cm
- 6x ESC Signal Wire - 42cm
- 1x Insulation Sticker
- 2x XT30 Male Connectors
- 1x 10AWG Silicone Wire Power Cable - 18cm
- 1x Amass AS150 7mm Anti Spark Connector
- Heat Shrink
