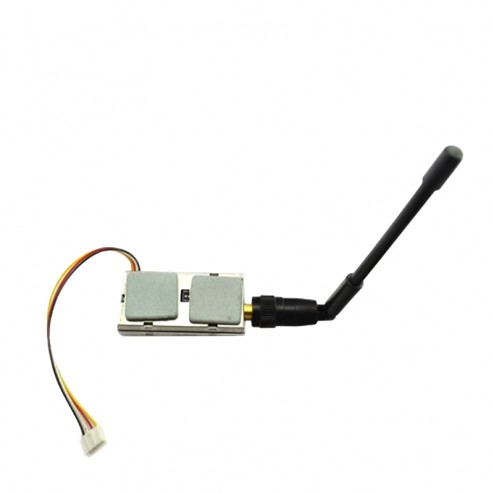

T1013 V2 1.3 GHZ 0.5-1W FPV TRANSMITTER (INTERNATIONAL VERSION)
The newT1013 V2 transmitter is better than ever, it has been completly redesined and tailored for FPV with a handfull of improvements, such as: new switching regulator, ceramic high efficency low profile heat sinks, high quality audio channel, runs 50% cooler than its previous model, lower profile, 10 grams lighter and overall better performance.
It's a power house, providing a 500/1000 miliwatts of pre RF output. It is the best transmitter for long range applications. (for RC models is recommended to install the T1013 as far as possible away from the models receiver) Even with all that power, it weights only around 0.8oz (25grams). With all this, and the right setup, for sure you can get video reception miles away. It is highly recommended to install the transmitter in ventilated areas, to allow the air to keep it cool. As any of our transmitters, T1013 V2 has digital Phase-Lock-Loop circuit avoiding frequency drift, providing a stable and solid audio and video delivery. You can not go wrong with it.
Features:
- 500/1000mW RF output power
- (4) User-selectable channels
- 1.3 GHz frequency band
- Works with any camera PAL or NTSC
- Digital Phase-Lock-Loop circuit no drifting problem
- Works with any of our receivers
- Audio and Video cable with RCA adapter
- Highly integrated circuit
- High reliability/linearity/AIGaAs/GaAs FET amplifier module
- Uses digital phase-lock-loop circuit without temperature drifting problem
- Weight: 30g (transmitter only)
Specifications:
-
Output power 50-ohm load CH1 Vcc = 12V: 30dBm (1000mW)
-
Nominal output impedance: 50 ohms
-
Operating voltage: Vcc, 10.5V (minimum), 12V (typical), 13V (maximum)
-
Supply current Vcc = 12V: 350mA (typical), 400mA (maximum)
-
Video input voltage 75-ohm impedance: 1Vp-p
-
Audio input voltage 10k ohm impedance: 1Vp-p
-
Sub carrier frequency: 5.5MHz
-
Operation temperature: -10 to 40 degrees Celsius
-
Storage temperature: -40 to 80 degrees Celsius
-
Operating humidity: 20 to 80%
-
Storage humidity: 10 to 80%
- Dimensions and weight: 50 x 26 x 11mm, 0.93oz (26g) (without antenna)
