bout this product

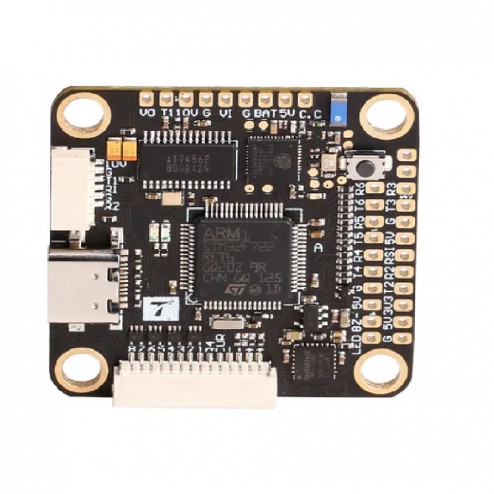

T-Motor's F7 Pro Flight Controller has arrived! Enjoy full function in a wireless state! Great for cinematic professional use. This FC features 8 UARTS, WiFi and Bluetooth capabilites, and a 30.5x30.5 mounting pattern. Using the DJI FPV System? This FC has Plug and Play compatibility designed just for the DJI FPV Air Unit.
VIDEO: New released T-Motor F7 Pro FC
Features
Supports a maximum of 8 PWM outputs
Analyze Blackbox Data Wirelessly
Set Motor Directions Wirelessly
DJI Plug and Play Compatible
Supports INAV and BetaFlight
SpeedyBee APP Compatible
Wireless BetaFlight Tuning
Wireless Flash Firmware
VTX Switch Jumper
Built-In WiFi
Specifications
Mounting Pattern: 30.5x30.5mm/M3
Dimensions: 37x37x7.5mm
MCU: STM32F722 RET6
Target: TMOTOR F7 V2
Blackbox: 16MB Flash
Built-in OSD: AT7456
ESC Signal: M1-M8
BEC: 10V/2A, 5V/3A
Barometer: BMP280
Input Voltage: 3-8S
Motor Outputs: 8
IMU: MPU6000
USB: Type-C
Weight: 8.1g
UARTS: 6
WiFi: Yes
Includes
1x T-Motor F7 PRO Flight Controller
4x Vibration Dampeners
2x FC to ESC Cable
