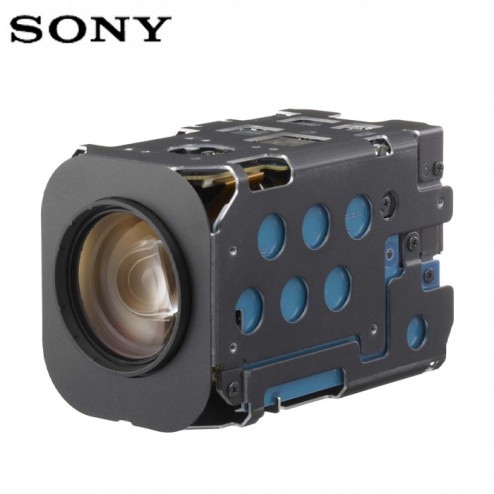

SONY FCB-EX1010P 36x Wide D Version Block Camera NEW

• High definition : 480P (SD)
• Connection : Closed system / CCTV wired
• Sensor : CCD
• Type : Box camera
• Brand Name : ryfutone
• supported operating systems : No
• Type : Video camera
• Model Number : FCB-EX1010P
• Lens (mm) : 36x

Descritpion:

The Sony FCB-EX1010P color block camera includes & frac14; type Exview Had CCD ™ along with exceptional quality and high zoom capabilities (432x w / optical zoom). In addition, the new SONY FCB-EX1010P camera is the first in this extraordinary camera series to have a 36x zoom lens with width D, as well as horizontal resolution of 530 TV lines, improved motion detection, spherical privacy zone masking with a mosaic effect, and improved multi lines (more than two) for titles. The Sony FCB-EX1010P also features a slow AE response function that automatically slows the rate at which the exposure level changes. The rate can be up to 32 times slower than when the fully automatic mode or automatic timer is selected.

Sony FCB-EX1010P HIGHLIGHTS:
* 1/4 type Exview Had CCD
* Auto ICR (Ir-Blocking Filter Removal) Mode
* Slow AE Response
* E-flip
* Image Freeze
* Mosaic Effect of Spherical Privacy Zone Masking
* Multi Lines for Title
* Spot AE
* electronic shutter / slow shutter
* serial interface (max. 38.4 Kb / s) with TTL signal level control (VISCA ™ protocol)
* key switch (CN601)
* internal / external sync (V-lock)
* 16-bytes of free memory for recording data (serial no., camera / system ID, etc.)
* factory presets
* register set command
* RoHS compliant

The SONY FCB-EX1010P Camera SPECIFICATIONS:
* Image sensor: 1/4 type Exview Had CCD (Progressive Scan)
* Total number of pixels: Approx. 380,000 pixels (NTSC), 440,000 (PAL)
* Lens : 36x optical zoom, F1. 6 to F4.5-f = 3.4mm to 122.4mm
* digital zoom: 12x (432x with optical zoom)
* horizontal resolution: ON / OFF (530TV line resolution mode ON)
* viewing angle (H): 57.8 ° ( wide angle) up to 1.7 ° (tele)
* Min. working distance: 1.5 m to tele
* Sync system: Internal / External (V-lock)
* Minimum lighting: 1.4 lx (typical) (F1.6, 50 IRE)
* S / N ratio: More than 50 dB
* Electronic shutter: 1/1 to 1/10, 000 s, 22 steps
* White balance: Auto, ATW, Indoor, Outdoor, One-push, manual
* Gain: Auto / Manual (-3 to 28 dB, dB steps)
* AE: auto, manual, aperture priority, bright, exposure compensation, backlight compensation Slow AE
* extend dynamic range (width-D): ON / OFF
* day / night: Auto / Manual
* exposure compensation: -10.5 to 10.5 dB (1.5 dB steps)
* backlight compensation: On / Off
* Privacy zone masking: On / Off (24 positions, 8 positions per screen), 14 colors + Mosaic
* Character Generator: Mode: ON / OFF (White Balance, Gain etc ...), Title: 11 lines (20 characters per line)
* flicker
Cancel: Auto * Focus system: Auto (Sensitivity: normal, low), One-push AF, manual, infinity, interval AF, zoom trigger AF
* picture effects: E-Flip, Nega Art, Black & White, mirror picture
* camera operating
switch: zoom tele, zoom width * video output: VBS: 1.0 vss (sync negative), Y / C
* camera control interface: VISCA (TTL signal level), baud rate: 9.6 Kb / s, 19.2 Kb / s, 38.4 Kb / s, 1 or 2 stop bits can be selected
* storage temperature: -20 to 60 C (-4 to 140 ° F)
* operating temperature: 0 to 50 C (32 to 122 ° F)
* power consumption: 6 to 12 V DC / 2.6 watts (motors inactive), 4.9 watts (motors active)
* weight: 230g
* dimensions (wxhxd): 50.0mm x 57.5mm x 87.9mm
