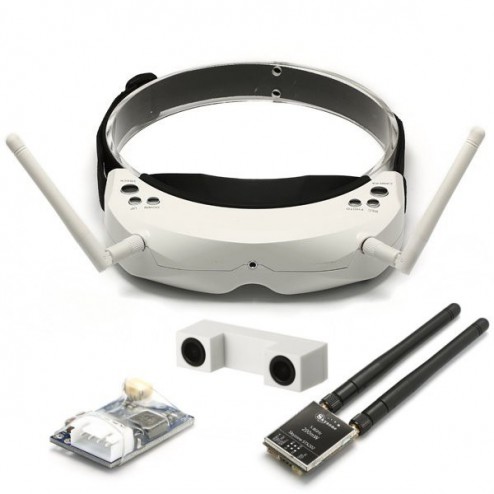

Skyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles w/ VTX, 3D Camera, Head Tracking, HDMI, DVR
The new Skyzone SKY02S V+ 5.8G 40CH 3D FPV Goggles are an upgrade of the previous Skyzone 3D Goggles. These new goggles keep all the features of previous versions, including 3D/2D mode, built-in DVR with playback, head tracking, built-in front camera etc, and add some new features like HDMI-IN, channel auto searching, new eyeshade with headband for a more comfortable feel.
SKY02S V+ FPV goggles have two built in 5.8GHz receiving modules, two antenna ports and two independently-working display modules, bringing you 3D FPV flight experience (SCAM302 3D camera and STX202 two-way transmitters required). The two lens of the 3D camera work in parallel so that the 3D effect can be enhanced for close shots and reduced for longer shots, resulting in a vivid 3D experience.
SKY02S V+ FPV goggles can also work in standard diversity reception mode. In this mode it displays normal 2D images. Its radio channel and band settings may be compatible with STX202 and other 5.8GHz transmitters, and in total it supports bands and 40 channels ( see the Specifications Description for details )
These goggles come as an all in one package so you don’t have to worry about purchasing a set of goggles and then needing to buy a receiver or even yet a dual diversity receiver system that adds much expense to the overall cost of the goggles. These goggles even come with a built in DVR just add a micro SD card and you are good to go. Head Tracking? Yep! It’s included! No need to go out and buy an expensive tracker if that’s what your into. When comparing these goggles to other goggles there’s not much of a comparison. The others are just goggles. Skyzone Sky02S V+ are the whole package! Save some of they money you would spend on building another set of goggles and spend that savings on something that can fly!
Specifications
- Brand Name: Skyzone
- SKY02S 3D FPV Goggles
- Binocular Display: FOV: 30 degree(Diagonal)
- Resolution: 854x480(WVGA).1,229,760 color sub-pixels
- Brightness: 350cd/㎡
- Interpupillary Distance(IPD): 59-69MM Adjustable
- Sensitivity: -90dBm±1dBm
- Antenna: SMA 50ohm
- Front Camera: FOV: 60 degree(Diagonal)
- Resolution: 640x480(VGA)
- Focal Length: f=4.0mm
- F/NO: =2.8
- Head Tracker: Sensor: Magnetic,Inertial and gyro
- Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH
- Micro SD: Support to 32GB
- Compression: MJPEG, 30fps, AVI
- Picture: JPEG
- Record Rate: 6Mbps
- Video Standard: NTSC/PAL
- Video output level: 1.0Vp‐p Typ. / 75ohm
- Audio output level: 1.0Vp‐p Typ. / 10Kohm
- Div. AV OUT(3.5mm4P): Diversity Video, Audio output
- EAR OUT(3.5mm3P): Stereo 16Ω/150mW
- AV IN(3.5mm4P): Video ,Audio input
- HDMI IN(Micro HDMI/D‐Type): HDMI 1.4 specification
- 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,
- 1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
- DC IN: DC 7~26V/ 1A
- Power Consumption: 12V input, 5.4W
- Dimensions: 168(L)X92.5(W)X41(H)MM
- Operating Temperature: 0 ℃~+60
- SCAM302 Camera:
- FOV: 120 degree(Diagonal)
- F/NO: =2.3
- Interpupillary Distance(IPD): 40mm
- Resolution: 720x576
- Video Standard: PAL
- Video Output Level: 1.0Vp-p Typ./75ohm
- Power Supply: DC5V/0.5A
- Power Consumption: 1.6W
- Dimension: 56.5x 17.8x14mm
- Weight: 12g
- Operating Temp.: 0℃~+60℃
- STX202 Transmitter:
- Wideband FM Modulate
- Video Standard: NTSC/PAL
- RF Output Impedance: 50ohm
- RF Output Power: 22-24dBm(Typ.23dBm)
- Video Input Level: 1.0Vp-p Typ./75ohm
- Video Band Width: 8.0MHz
- Audio Input Level: 2.0Vp-p Typ./10Kohm
- Audio Carrier Frequency: 6.5MHz
- Power Consumption: 5V input 5.5W
- Dimension: 38x 32x8.9mm
- Weight: 14g
- Operating Temp.: 0℃~+70℃
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Features:
- Front Camera, more convenience
- Image Adjustment, can set the brightness, contrast, hue, sharpness etc.
- With Head Tracking, pan and tilt
- With DVR function, suggest to format the SD card the first time you use
- Playback function
- HDMI Input
- AV Output/Input
Package Includes:
- 1 x Goggles
- 1 x SCAM302 Camera
- 1 x STX202 Transmitter
- 1 x Futaba Data Cable
- 1 x JR Data Cable
- 1 x WFLY Data Cable
- 4 x 5.8G 2dBi Antenna
- 1 x 5P Camera Cable
- 1 x 3P TX Remote Control Cable
- 1 x AV Cable
- 1 x Power Cable
- 1 x 2P TX Power Cable
