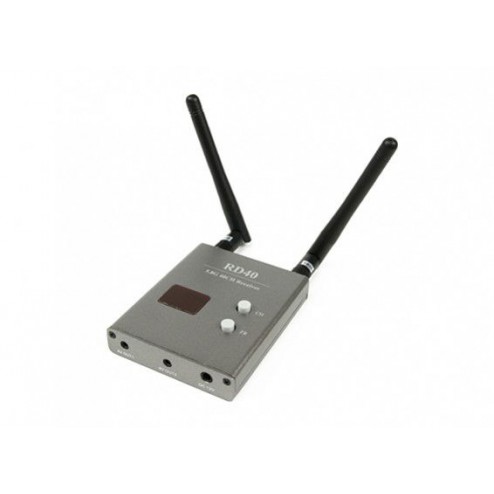

SkyZone FPV 5.8 GHz 40CH RD40 Diversity Receiver With A/V and Power Cables
SkyZone has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.
The RD40 Diversity Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. There are two independent AV outputs for both audio and video. So you can use a monitor and a set of goggles or maybe a DVR to record your flight, great for when your significant other asks where you were for the last 4 hours!
Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.
Features:
• 40 channels: Cover A, B, E, F and R bands
• Diversity receivers
• Two switching buttons for the band and channel
• Two digit display for the band and channel
• Power off memory for last channel and band
• Dual independent video and audio signal outputs
Specs:
Video format supported: NTSC/PAL/CECAM
Antenna connections: RP-SMA jack
Power input: 7~24V
Working current: 280mA max
Rx sensitivity -90dBm
Video impedance: 75Ω
Dimension: 80x 65 x15mm
Weight: 100g
Frequency range:
FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
Included:
RD10 Diversity receiver
Power and A/V cables
2 dipole antennas
Instructions
