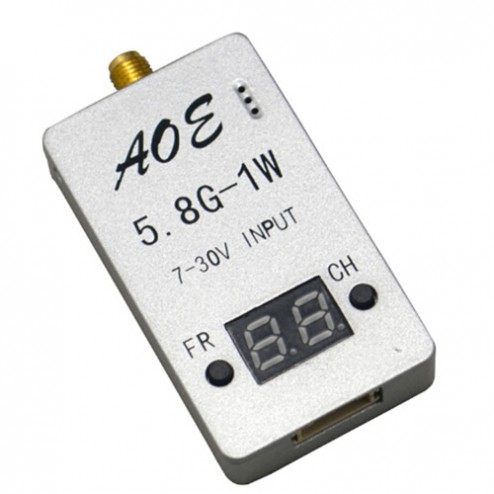

5.8G 32CH 1000mW 1W TS932 Transmitter 2-6s LIPO Input 5V 1A Output Aluminum Shell
32 channels: Cover A, B, E bands and F bands
Two switching buttons for the band and channel
Two digits display for the band and channel
Power off memory for last channel and band
Dual Independent video and audio signal outputs
Transmitter TX TS932 specs:
Power input: 7- 30V (3S Lipoly suggested)
Transmitting power: 1000mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Dimension: 58x 33x 11mm(excluding antenna)
Button Instruction and Frequency channel table:
short press key FR choose 1 2 3 4 frequency group.
short press key CH choose 1 2 3 4 5 6 7 8 frequency point.
