توصیف
جزییات
Model: EFT V3-E
Max Current: 480A
Size: 120x14mm
Weight: 130g (without cable)
Suitable for Octocopter
Note(V3-E):
-Two power lines can be directly connected to two 6S battery;
-The eight XT60 female interface output is 12S, to transfer power supply;
-2 XT30 female connector facing up for the 6S power interface, the two XT30 male connector facing up to 12S power connector.
Four main power lines are 10awg silicone line, the length of 20cm, according to the size of different models cut length after welding power connector;
Four main power lines on the left side of the red and black is one way, the right red and black is one way, two power lines can be directly connected to two 6S battery, Series circuit inside.
Side eight XT60 female interface output for the 12S, to the power supply;
Reserved four interfaces to other equipment power supply;
upper apex：two XT30 female interface for the 6S power interface, the 6S power supply from the series of two batteries in the end of the total, two XT30 male interface for the 12S power interface;
Distribution board contains XT30 male and female, but does not contain XT60 male, need to be equipped with XT60 male.
Compare of the eight and six axes are as follows:

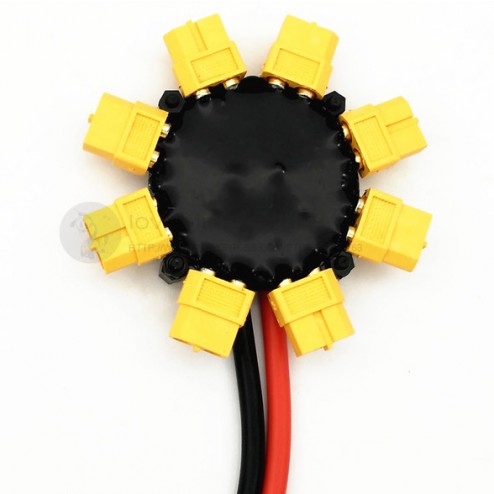

1*8 axes power hub
