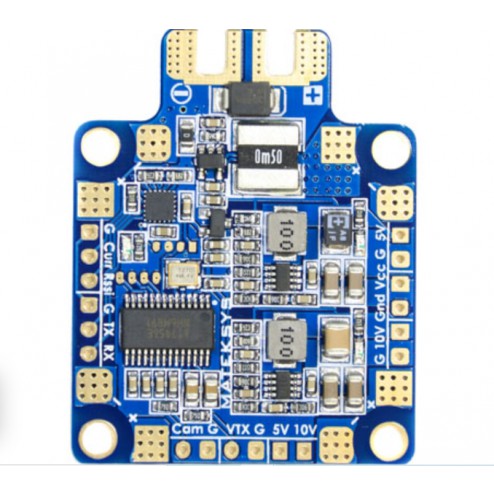

Matek Systems HUBOSD8-SE w/STOSD8-SE, Current Sensor, Dual BEC and 6S Max
General
تجهیزات FPV
توصیف
جزییات
- Input voltage range: 9 - 27VDC(3~6s LiPo) w/ TVS protection
- Regulated 5V(POSCAP filtered) and 10V(MLCC filtered) outputs
- Current Rating: 4X30A (Max.4x39A)
- Current sensor: 184A
- Current signal output: 3.3V ADC for Flight controler
- Built-in STOSD8-SE
- 46x36x4mm, 9g
- Mounting holes 30.5mm Ø3mm
BEC 10V Outputs
- Designed for Video TX or FPV camera.
- Voltage: 10.0 +/- 0.2VDC
- Continuous current: 1.5 Amps (Max.2A 10s/minute)
- Output Ripple: 15mV (VIn=24V, [email protected] load)
- Short-circuit tolerant (2 seconds/minute)
- 10V can be used to power cameras labeled as 12V
- The 3S LiPo input voltage should be 10.8V plus
BEC 5V Outputs
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 1.5 Amps (Max.2A 10s/minute)
- Output Ripple: 23mV (VIn=24V, [email protected] load) Short-circuit tolerant (2 seconds/minute)
- Short-circuit tolerant (2 seconds/minute)
STOSD8
- Autodetect PAL/NTSC
- Dynamic on screen info
- Automatic flight timer
- Automatic cell detection
- Low battery alarm
- Exceeding mAh alarm
- Min.voltage & Max.current recorder
- Onscreen Pilot ID
- Firmware upgradable
- Simple GUI & setting
- Plug & Play
