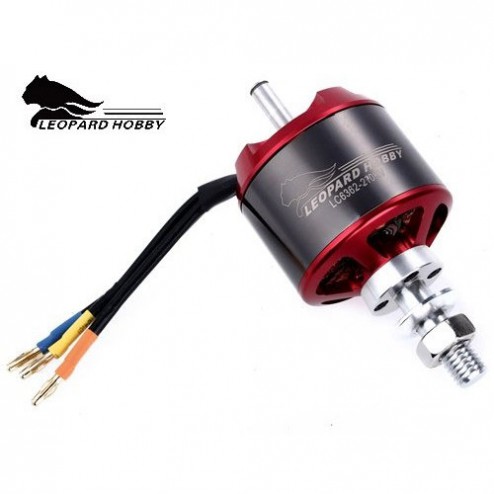

Leopard LC-series brushless motors feature an extended shaft which protrudes out the rear of the motor. This allows the user flexible mounting options without having to disassemble the motor to reverse the shaft. The user can either (1) mount the motor in a traditional manner against the front of a firewall and use the included bolt-on prop adapter, or (2) mount it against the rear of the firewall with the shaft extending forward. This mounting option is most common in sailplanes or racer-style models and requires you to use a collet-style adapter available separately or sometimes included with your model.
What's included:
● (1) LC6362-8T 270kv motor, pre-soldered with 4.0mm male bullet connectors
● (1) Set of matching 4.0mm bullet connectors for your ESC
● (1) X-mount plate
● (1) Bolt-on style threaded prop adapter
Features:
● Lightweight design uses reinforced materials to ensure high-speed operation under constant conditions
● High efficiency w/ low running temperatures
● Built from top-quality materials with premium imported bearings
● Dynamic balancing accuracy of at least 99%, greatly improving the efficiency of the motor.
● Hand wound with precision
● High overload capacity
● Excellent heat dissipation
● Designed to endure even the most demanding applications
● Long service life with minimal maintenance required
Specifications:
● KV: 270
● Lipo cells: 4-13s
● No load current (20.0v): 2.4A
● Max current: 80A
● Power: 2775W (See chart linked below)
● Resistance: .0229 ohm
● Motor shaft diameter: 8.0mm
● Dimensions: 63.0 x 62.0
● Weight: 595g (motor only)* | 672g (with prop adapter & x-mount)*
● Prop: 15x6 - 22x10
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | Leopard |
|---|
