موتور براشلس LC4260 4T 780KV

دسترسی: موجود

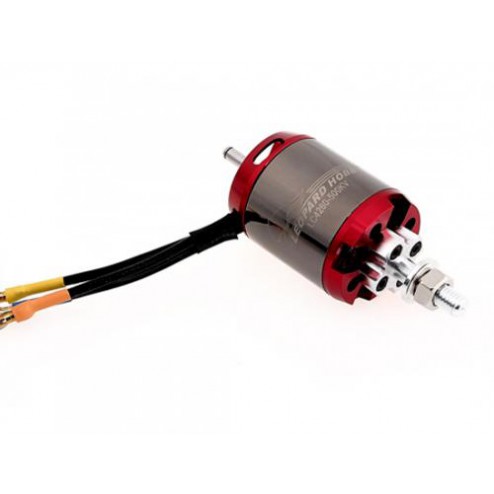

The Leopard Power 4260/4T is a 9.45 ounce, 780kv, 1000 watt 40-class outrunner brushless motor that is well suited for sport and scale planes weighing 3 - 5 pounds.  It is ideally designed for use with 3-5 cell lipo batteries.  We recommend using a 80 amp ESC with this motor.


The Leopard Power 4260/4T motor comes with 4.0mm male bullet connectors installed.  An x-mount is included for mounting the motor to a firewall, and a rotor end prop adapter is included for mounting propellers.

Specifications for the Leopard 4260/4T 780kv Outrunner Brushless Motor
Weight   :  9.45 oz.  (268g)
Diameter:   1.65 inches (42.0mm)
Length:  2.36 inches (60.0mm)
Shaft:   5.0mm
Bearings:  Rear: 6 x 15 x 5mm / Front:  6 x 13 x 5mm
Operating Voltage:   3-5 Cell Lipo
Measured KV:  780kv
Maximum Amps:   75 amps
Maximum Watts 1000 watts
Prop Mounting:  Rotor End Prop Adapter (included)
 5.0mm Collet-Style Prop Adapter (sold separately)
Motor Mounting:  X-Mount (included)
Mounting Bolt Pattern:   25mm x 25mm tapped for 3mm screws
Mounting Configuration:   Front or Rear of firewall
تولید کننده Leopard
