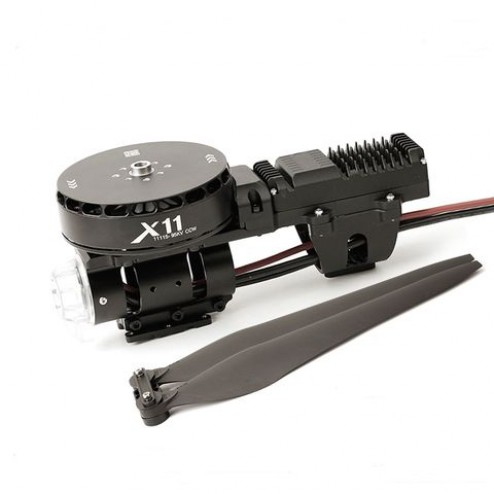

Hobbywing X11-14S series power system has a maximum thrust force of 34kg at 54V. It also supports high-voltage batteries (3.85v) of up to 60.9V. It is one of the best choice for heavy payload UAV drones and high capacity agriculture drones.
Main Features:
High pressure drive & high thrust force
The power system from the X11-14S series has a maximum thrust force of 34kg at 54V. By reducing the operating current and the weight of the electronical connection, the X11 is able to achieve a large load of thrust to ensure stability and reliability of the system. It also supports high-voltage batteries (3.85v) of up to 60.9V.
Protection class IPX7
The X11 is equipped with an overall waterproofing protection of IPX7 rating. It guarantees excellent waterproofing and dustproofing protection. The X11 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.
Electrical & structural performance double optimization
The iron core structure from the motor has been redesigned to reduce the internal resistance and increase the overall efficiency rate. Additionally, the weight of the motor is reduced to improve the overall performance.By adopting the FOC vector control drive technology with fixed-point optimization, the drive efficiency and the battery life are further improved. The factory chooses high quality large bearing system (6002) to increase load capacity. This would mean that the structure of the diameter shalf will be increased to give better rigidity, longer life and is not easily deformed.
Enrich the language of navigation lights
More power failures are added into the system in order to find the fault. The flashing display of the flight lights will indicate the issue and users are able to troubleshoot them in QuickTime.
Tiled integrated structure for enhanced heat dissipation & lower center of gravity
X11 series power system adopts a newly integrated structural design. The overall CG is reduced and is lowered by 10mm. The overall flight will be more stable. The compatibility of rack equipment will be greater. The ESC & motor heat dissipation are designed separately to
improve the overall heat dissipation effect of the system. Compared to the X9, the new X11 will operate at a lower temperature (20% ~ 25%). This ensures that the large heavy-duty UAVs carries out a safe and stabilized operation at all times.
System anti-interference upgrade
The new layout of the PCB is optimized in order to cope with high power interference. The data communication signal line adopts a fully shielded bundle line, and the working data uses CAN/serial port data transmission, which improves the overall anti-external interference and high-current interference performance.
Multiple protection functions
X11 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection,
Current protection and Stall protection.It is able to output an operating status data to the flight controller in real time including;
input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOS tube temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves the overall system reliability.
Note: Using the Hobbywing Data Link data acquisition memory (Note: need to be purchased separately) can simultaneously
collect the real-time operation data of the 8-channel power system, and pass it to the flight controller through the bus interface to form a closed-loop control system.
Specifications:
Item Brand: Hobbywing
Item Model: Hobbywing X11
Max. Thrust: 34kg/ axis（53.6V, sea level）
Recommended Takeoff Weight: 15-17kg/axis(sea level)
Recommended LiPo Battery: 14S(LiPo)
Operating Temperature: -20-55℃
Combo Weight: 2340g
Waterproof Rating: IPX7
Motor
KV Rating: 95 KV
Stator Size: 111*15
Tube Diameter: φ45/50mm
Bearing: Waterproof Bearing
ESC
Recommended LiPo Battery: 14S LiPo
PWM Input Signal Level: 3.3V/5V
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1050-1950us
Max. Input Voltage: 60.9V
Max. Peak Current (10s): 150A (excellent heat dissipation are required)
BEC: No
Mounting Holes for Nozzle: φ28.4mm-2*M3
Propeller
Diameter×Pitch: 41135
Main Features:
High pressure drive & high thrust force
The power system from the X11-14S series has a maximum thrust force of 34kg at 54V. By reducing the operating current and the weight of the electronical connection, the X11 is able to achieve a large load of thrust to ensure stability and reliability of the system. It also supports high-voltage batteries (3.85v) of up to 60.9V.
Protection class IPX7
The X11 is equipped with an overall waterproofing protection of IPX7 rating. It guarantees excellent waterproofing and dustproofing protection. The X11 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.
Electrical & structural performance double optimization
The iron core structure from the motor has been redesigned to reduce the internal resistance and increase the overall efficiency rate. Additionally, the weight of the motor is reduced to improve the overall performance.By adopting the FOC vector control drive technology with fixed-point optimization, the drive efficiency and the battery life are further improved. The factory chooses high quality large bearing system (6002) to increase load capacity. This would mean that the structure of the diameter shalf will be increased to give better rigidity, longer life and is not easily deformed.
Enrich the language of navigation lights
More power failures are added into the system in order to find the fault. The flashing display of the flight lights will indicate the issue and users are able to troubleshoot them in QuickTime.
Tiled integrated structure for enhanced heat dissipation & lower center of gravity
X11 series power system adopts a newly integrated structural design. The overall CG is reduced and is lowered by 10mm. The overall flight will be more stable. The compatibility of rack equipment will be greater. The ESC & motor heat dissipation are designed separately to
improve the overall heat dissipation effect of the system. Compared to the X9, the new X11 will operate at a lower temperature (20% ~ 25%). This ensures that the large heavy-duty UAVs carries out a safe and stabilized operation at all times.
System anti-interference upgrade
The new layout of the PCB is optimized in order to cope with high power interference. The data communication signal line adopts a fully shielded bundle line, and the working data uses CAN/serial port data transmission, which improves the overall anti-external interference and high-current interference performance.
Multiple protection functions
X11 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection,
Current protection and Stall protection.It is able to output an operating status data to the flight controller in real time including;
input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOS tube temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves the overall system reliability.
Note: Using the Hobbywing Data Link data acquisition memory (Note: need to be purchased separately) can simultaneously
collect the real-time operation data of the 8-channel power system, and pass it to the flight controller through the bus interface to form a closed-loop control system.
Specifications:
Item Brand: Hobbywing
Item Model: Hobbywing X11
Max. Thrust: 34kg/ axis（53.6V, sea level）
Recommended Takeoff Weight: 15-17kg/axis(sea level)
Recommended LiPo Battery: 14S(LiPo)
Operating Temperature: -20-55℃
Combo Weight: 2340g
Waterproof Rating: IPX7
Motor
KV Rating: 95 KV
Stator Size: 111*15
Tube Diameter: φ45/50mm
Bearing: Waterproof Bearing
ESC
Recommended LiPo Battery: 14S LiPo
PWM Input Signal Level: 3.3V/5V
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1050-1950us
Max. Input Voltage: 60.9V
Max. Peak Current (10s): 150A (excellent heat dissipation are required)
BEC: No
Mounting Holes for Nozzle: φ28.4mm-2*M3
Propeller
Diameter×Pitch: 41135
XRotor X11 14S & 18S CAD
