Product description

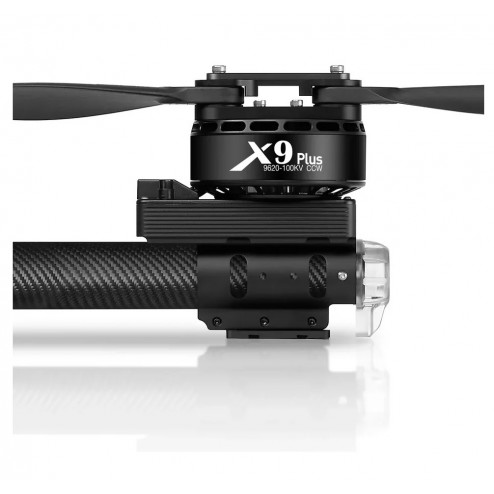

XRotor X9 PLUS CAD
| Product Name | |
| Specifications | Max. Thrust Recommended Takeoff Weight Recommended LiPo Battery Operating Temperature Combo Weight Waterproof Rating |
| Motor | KV Rating Stator Size Bearing |
| ESC | Recommended LiPo Battery PWM Input Signal Level Throttle Signal Frequency Operating Pulse Width Max. Input Voltage Max. Input Current (Short duration) BEC |
| Propeller | Diameter×Pitch |
| Product Name | XRotor X9-PLUS | |
| Specifications | Max. Thrust Recommended Takeoff Weight Recommended LiPo Battery Operating Temperature Combo Weight Waterproof Rating |
27kg/Axis (53.6V, Sea Level) 11-13kg/Axis (53.6V, Sea Level) 14S（LiPo） -20~50℃ 1774g IPX7 |
| Motor | KV Rating Stator Size Bearing |
100KV 96X20mm Bearings imported from Japan |
| ESC | Recommended LiPo Battery PWM Input Signal Level Throttle Signal Frequency Operating Pulse Width Max. Input Voltage Max. Input Current (Short duration) BEC |
6-14S LiPo 3.3V/5V(Compatible) 50-500Hz 1050-1950us(Fixed or cannot be Programmed) 60.9V 120A(w/ Good Heat Dissipation) No |
| Propeller | Diameter×Pitch | 36190 |
Products Description
Power And Efficiency Double Breakthrough
The new X9 plus power system has greatly improved in strength and efficiency. It uses a load of up to 13kg/axis,with a maximum pulling force of 26.5kg for 36-inch composite aviation folding blades. It is recommended to use 11-13kg single-axis load for better efficiency in the range of 11-12kg. The motor adopts the 9 series large load motor from Hobbywing. The electromagnetic design and system optimization of the single-axis load(13kg) at fixed point strengthens the algorithm of the FOC application.
The X9-Plus is three-dimensional and designed with an integrated motor and ESC as one. The installation of the lightweight structure is convenient and can be matched
Protection Class IPX6
The X9-Plus is equipped with an overall waterproofing protection of IPX6 rating. It guarantees excellent waterproofing and dustproofing protection. The X9-Plus is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.
R&D Center in Shenzhen
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | HOBBYWING |
|---|
