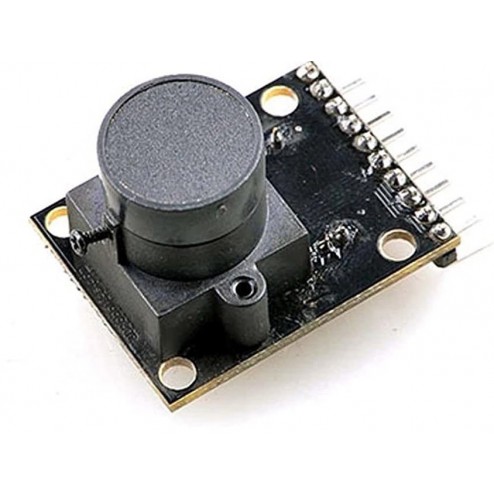

فلایت کنترل Hobbypower Optical Flow Sensor Module V1.0 for APM 2.5 2.6 2.8

Use to improve accuracy when you can't use the GPS. Probelms: Sensor - Can only work under good lighting condition - Use fixed foucus lens, so no focus lens Objects that within 30 cm - Sensor will make sensor rotation in disorder - Connection for APM2.5, APM2.52, APM2.6, APM2.8 sensor all can be used - Connection with VCC, GND , MISO, MOSI, SCLK and NCS pins - Default installation mode is camera upside down, the pins heads forward - Disconnection with misolvl jumping cable at the back of the board, rewelding the miso pins to 3.3V voltage. This way, there will be no inteference MPU6000<br/> Sensor Testing:<br/> Update – Test Sketch to APM: – If you use APM2, You can download hex files in download area, then use Mission Planner Original Setting >> Load Firmware to install Custom Firmware connections to your APM2 – If you use apm1, you need to open the Arduino IDE and load ap_ _ _ _ _ _ _ _ _ _ opticalflow _ _ _ _ _ _ _ _ _ _ test. PDE, and update it toyour apm1 - Use serial port monitor or AP Mission Planner Terminal to connect with APM<br/> 'C' input - , to make sure that sThe sensor respond APM<br/> 'de Input – M'start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0 Load Firmware Install Custom Firmware Connections to Your APM2 - If you use APM1, you need to open the Arduino IDE and load AP _ _ _ _ _ _ _ _ _ _ OpticalFlow _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ PDE, and update it toyour apm1 - Use serial port monitor or AP Mission Planner Terminal to connect with APM<br/> 'C' input - , to make sure that sThe sensor respond APM<br/> 'de Input – M'start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0 Load Firmware Install Custom Firmware Connections to Your APM2 - If you use APM1, you need to open the Arduino IDE and load AP _ _ _ _ _ _ _ _ _ _ OpticalFlow _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ PDE, and update it toyour apm1 - Use serial port monitor or AP Mission Planner Terminal to connect with APM<br/> 'C' input - , to make sure that sThe sensor respond APM<br/> 'de Input – M'start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0 You need to open the Arduino IDE and load ap _ _ _ _ _ _ _ _ _ _ opticalflow _ _ _ _ _ _ _ _ _ _ test. PDE, and update it toyour apm1 - Use serial port monitor or AP Mission Planner Terminal to connect with APM<br/> 'C' input - , to make sure that sThe sensor respond APM<br/> 'de Input – M'start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0 You need to open the Arduino IDE and load ap _ _ _ _ _ _ _ _ _ _ opticalflow _ _ _ _ _ _ _ _ _ _ test. PDE, and update it toyour apm1 - Use serial port monitor or AP Mission Planner Terminal to connect with APM<br/> 'C' input - , to make sure that sThe sensor respond APM<br/> 'de Input – M'start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0 start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0 start the front or rear camera, check the changes of xy value. If ther is no change, rotate the lens to adjust the distance interval Package includes: 1 x Optical Flow Sensor V1.0
