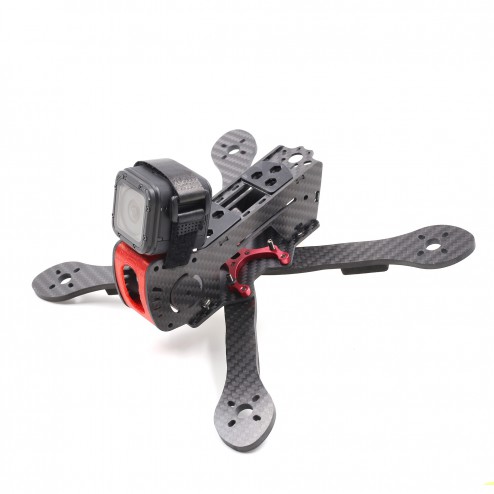

GepRC GEP-AX5 215mm (Kit)
This frame is GEP-AX5, called ‘AirBus’. There are 3 kinds of wheelbase: 4 inch(180mm), 5 inch(215mm), 6 inch(250mm).
GEPRC designed to fix 4 arm board with a “X” CNC aluminium, easy to removal and installation, and the CNC aluminium is strengthen the strong of the “X” Frames.
There are a PDB(5V 3A output, 12V 500mA output ) and XT60, save the installation time. It is worth mentioning that the Tail lights integrated 6 bright LED tail lights and the buzzer. LED tail lights support that FC (Betaflight / CleanFlight) control the color and the condition of the lights. The biggest feature is in the nose of this frame, used the 3D TPU printing and the camera mount designed by 35 degree angle inclination. It can extremely reduce the wind resistance.
Specifications：
Name：GEP-AX5
Weight：116g（AX5）,106g(AX4),122g(AX6)
Wheelbase：AX5:215mm（motor to motor diagonal）
AX4:180mm（motor to motor diagonal）
AX6:250mm（motor to motor diagonal）
Adjustable lens:0-50 deg
Arms board:4mm
Sider board:2mm
Top board:1.5mm
Recommended：
Flight Controller：F3 /Naze32/ CC3D
Motors： 2204/2205/2206/2305
ESC：20A-30A
Propeller：5inch
Battery: 4S 1300mAh
Features：
1. High strength 3K carbon board to ensure that the frame is strong
2. Thanks to the CNC aluminum, make the arm board stronger and easy to change
3. Camera mount designed 35 degree angle inclination, esay to installation the Gorpo, Session.
4. 3D TPU printing in the nose of this frame, extremely reduce the wind resistance.
5. Wheelbase: 5 inch 215mm, 4 inch 180mm, 6 inch 250mm.
6. Motor mount designed protection structure, to reduce the extent of motors’ injury in most cases.
7. “X” structure, good mobility.
8. Strong and beautiful structure, light weight (118g, including all fixed parts).
9. Adjustable lens, 0-55 deg
10. With a PDB, with a BEC (5/12v output, maximum 3A, maximum 500mA)
