Summary:

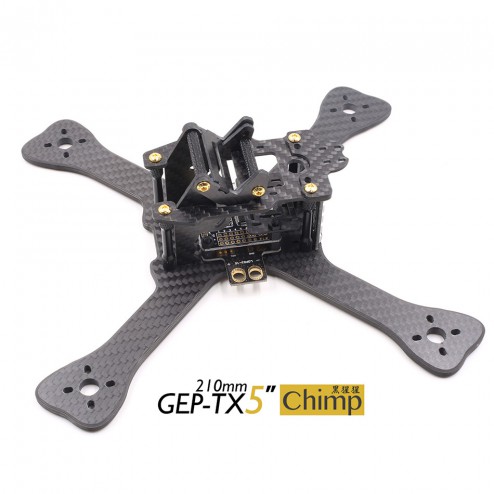

This we all call him Chimp, model is GEP-TX. Careful players can see, GEP-VX and our Chimp is the same series of products, the appearance of a bit like a big brother GEP-VX. Chimp is a frame that can take the Gopro camera. Structure of “X Ture”. Applicable to freestyle and competition, there are 3 versions of optional, 4 inch (wheelbase 180mm), 5 inch (wheelbase 210mm), 6 inch (wheelbase 230mm), are using 4mm thickness of the floor. The whole machine uses 3K ultra light carbon plate. Gopro elements can be adjusted to adjust the range of 20-50 degrees, the lens is perfect support Hs1177, Hs1190, swift, Plus OWL and other most lenses. Lens distance 28mm. A reasonable layout, the factory comes with 10 WS2812B lights, support the microcontroller or flight control. Motor protection like a fish, to protect the motor to a certain extent, very good. Whole machine using YFS screws, the factory comes with a golden version. Random comes with BEC, 5V/12V PDB output. Save most of the time the player.
Specifications：
Name：GEP-TX5 Chimp
Weight：92g
Wheelbase：210mm 5inch props
Size：193*185mm
Arms board:4mm
Side board:2mm
Other board:1.5mm
Recommended：
Flight Controller：F3 /Naze32/ CC3D
Motors： 2204/2205/2206/2305
ESC：20A-30A
Propeller：5inch
Battery: 3S 1300mAh ~ 4S 1300mAh
Features：
- 3K high strength carbon board to ensure that the frame is strong
- Rack comes with Gopro seat, adjustable angle, 20-50 degree
- 5 inch wheelbase 210mm, 4 inch wheelbase 180mm, 6 inch wheelbase 230mm
- YFS screws, 12.9 levels of hardness
- This is “X” layout
- Support HS1190, HS1170, Swift, OVL and other lenses
- The motor position widened, like fish, the collision is not easy to hit the motor
- Adjustable lens, 0-60 degree
- With a piece of PDB panels, integrated XT60, BEC (5/12v output)
- With a PDB, integrated XT60, BEC (5/12v output)
- With the development of LED lamp board, support flight control(cleanflight/betaflight) or work independently with MCU
