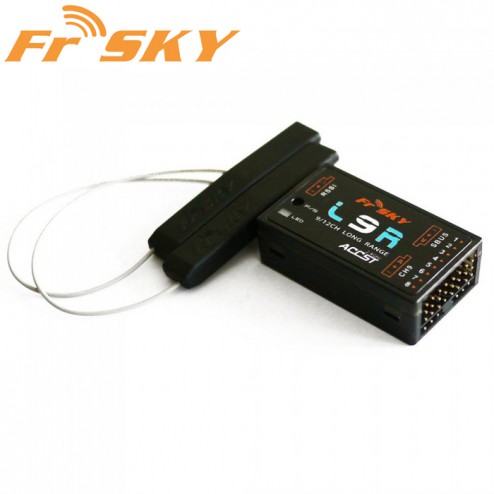

FrSky's L9R receiver features 12 available channels (9 via normal PWM outputs and all 12 channels on the dedicated Sbus output). What really makes this FrSky receiver stand out from the rest is the long range capabilities. How long? Testing shows it is reliably twice the range of FrSky's telemetry receivers, some claim more. And their telemetry receivers are well know for their range. How did FrSky do this? They did more then just rub some of the magical FrSky dust on it. They have been working on this receiver for a long time, and advanced filter makes this receiver work with a bone stock FrSky Taranis or FrSky XJT module. Yep, you heard it, nothing special is needed to double your range!
Features:
- Longer operating range: 2 times of the operating range for X-series receiver
- More number of channels: 1~9ch from conventional channel outputs, 1~12ch from SBUS port
- With RSSI output
Specifications:
- Number of Channels: 12
- Dimension: 346.5x 27 x 14.4mm
- Weight: 19g
- Operating VoltageRange: 4V~10V
- Operating TemperatureRange: -10°C~80°C
Compatibility:
- FrSky Taranis, X9D or the XJT module in LR12 mode
Specifications
- Dimension: 46.25x26.6x14.2mm (L x W x H)
- Weight: 19gm
- Antenna: PCB Antenna
- Number of Channels: 1-9ch from conventional channel outputs, 1-12ch from SBUS port
- RSSI output: Analog RSSI output (0-3.3V)
- Operating Voltage Range: 4.0-10V
- Operating Current: 100mA@5V
- Operating Range: Approx. 2 times that of X-series receivers
Compatibility
- FrSky X-series Module (XJT) etc in LR12 mode (Switch 1 is OFF, Switch 2 is ON)
- FrSky Taranis X9D etc. in LR12 mode
- L9R receiver does not work with FrSky V8, D8, and D16 Mode.
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | FrSky |
|---|
