Specification:

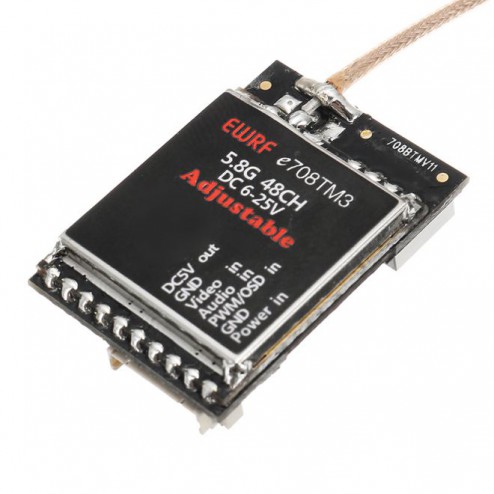

Brand name: EWRF
Item NO.: e708TM3
Frequency: 5.8G
Power: 25/200/600mW
Channel: 48CH
Voltage: 6-25V DC
Connector: RP-SMA/SMA Female
Features:
Support BF flight control OSD configuration transmitter parameters
(Integrated OSD BF flight control need to use the firmware above 3.1.X , independent OSD need to use 1.6.5 or more MWOSD firmware)
Flight control TX connected to the transmitter OSD IN, BF serial port set to TBS smartaudio
25mw 200mw 600mw transmit off (PITMODE) adjustable (transmit off, almost no transmission, only 1-2 m distance,when debugging aircraft to use)
5V BEC output, maximum 1A, can give flight control, camera power supply
Zero interference to power and switch channels, absolutely not interfere with other users
With overheating automatic protection, to prevent the module overheating damage
With the protection function, forgetting to plug the antenna will not damage the module
Supports PWM signal switching channel and switch PITMODE mode
Can lead to the key in the drone outside to tune the parameters
Package included:
1 x EWRF e708TM3 transmitter
