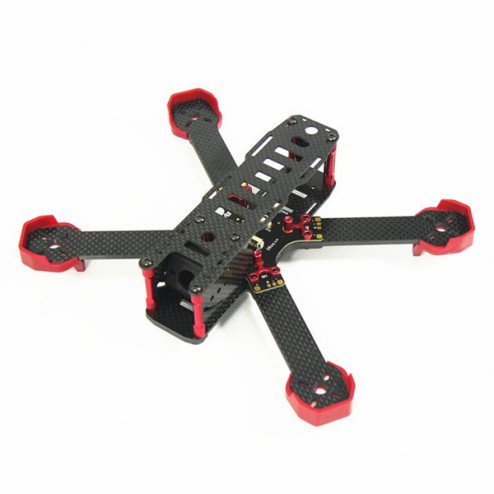

DALRC XR215 Plus carbon fiber frame
Specification:
Brand name: DALRC
Item module: XR215 PLUS
Wheelbase: 215mm
Meterial: Carbon fiber
Weight: 215mm
Recommend parts:
Motor: 2204/2205/2306
ESC: 12-30A
Flight controller: CC3D/NAZE32/F3
Propeller: 5040/5045
Battery: 3s 1000-4s 2200mAh
Package Included:
1 X Frame Kit
XR215 plus is a upgraded version of xr215 which optimized several parts makes the frame perform even better ,
side plate，top plate thickness change to 1.5mm，short and narrow main board reduced the total weight (new veriosn weigh 115g,
smaller PDB gives more room to mounting ESC, added current detection on PDB,（calculate current consume），
added no FC connected current and voltage display available fuction ,
Maximum FPV cam angle 50 °, arms detachable，added triangular aluminum gear to mount arms, easy to maintain.
Built in PDB and OSD, VTX switch as well as Beeper, OSD supports (voltage , flight time, artificial horizontal, Mode display ,remote controllor tune PID ，FC need to be connected）
Current consuming display (mAh)
Camera 5v/12v switchable,
Built-in buzzer, FC need be connected
Free given welding wire,XT60 Battery wire,
Two types adjustable cam holder (10-50 ° available)
Motor protector (landing gear)
3.5mm full 3k carbon firber arms
Guard plate mounting on the heard part ,
2812 led strip, need setup by connecting FC
The frame adopted import Taiwan high precise and strenght YFS bolt , post ect ,
Maximum flying speed reach to 150km/h
