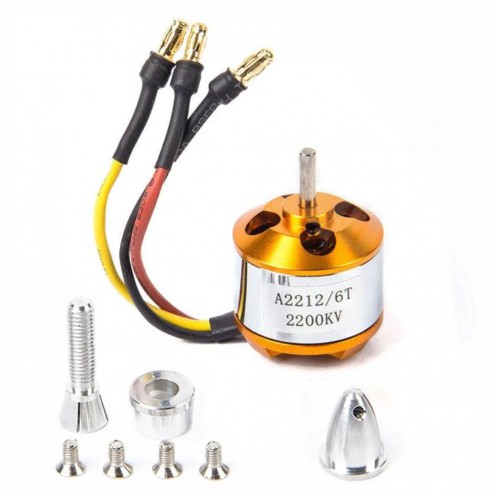

A2212 6T 2200KV Brushless Motor for Drone (Soldered Connector)
This A2212/6T 2200KV Brushless DC Motor For RC Quadcopters Planes Boats Vehicles and DIY Kits. 6T (BLDC) BRUSHLESS DC MOTOR is one of the most popular high-speed brushless motor designed specifically for RC hobbyists. The motor is outrunner type where outside case rotates while inside stays fixed. It is one of the popular models in the market because it’s low cost. It is preferred for small drones and planes. The motor features a 3.17mm hardened steel shaft and dual ball bearings for a smooth and steady rotating motion. A bullet type propeller adapter and cross motor mount are included. As it is a 3-phase motor, speed and efficiency are high. It comes with a motor mount, dome-type alloy prop spinner/adaptor, screws and 3.5mm banana connectors (Bullet plugs).
How to read the Motor Code
A2212/6T: It means 22mm motor diameter, 12mm motor shaft height and 6 turns per pole.
Specifications
- Number of Cells: 2-3s lipo; 6-10 cell NiMh (2V to 12V)
- Max Efficiency: 80%
- Internal Resistance: 90mΩ
- Max Current: 12A/60s
- Max Watts: 239 W
- Load Current: 21.5A
- Shaft Size: 3.17mm
- Weight: 49g (including all accessories)
- Dimensions: 27.5x30 (mm)
- Minimum Recommended ESC: 18A
- Recommended Model Weight: 300-1000g
- Mounting holes: 3mm (M3)
Package includes:
- 1 x A2212 1400Kv Brushless Motor for Drone
- 1 x Prop Adapter
