موتور براشلس A2212 10T 1400KV

موتور براشلس A2212 10T 1400KV

برای نظر دادن به این محصول اولین باشید

تماس بگیرید

دسترسی: موجود

کد کالا: 350394

+ -

توصیف

جزییات

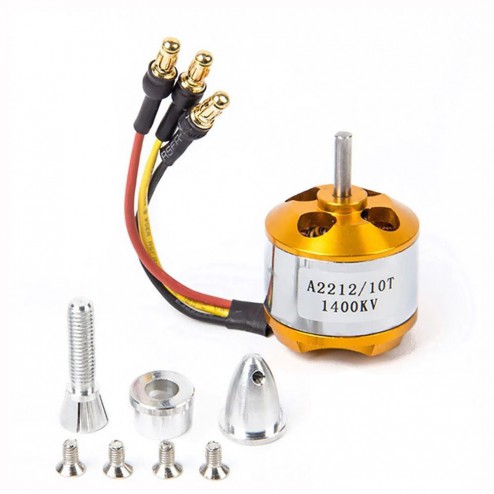

A2212 10T 1400KV Brushless Motor for Drone (Soldered Connector)



A2212 1400KV BLDC Brushless DC Motor is widely used for airplane aircraft quad copter. This motor comes with 80% maximum efficiency, 4-10A max current efficiency, and 16A / 60s current capacity. If you're looking about your quadcopter's performance, look no further than the A2212. Built with high-end magnets, a high pole count and custom motor mount, this motor is designed purely for multi-rotor applications. The A2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. This is not a modified airplane out a runner. It was designed from the ground up specifically for multi-rotor applications.

This 2200kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 Motor comes with the pre-soldered good quality connector for a fast and direct connection between ESC and the motor.

Note: “This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of input supply.”

Features :

  • The steel design is capable of withstanding competitional conditions.
  • Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
  • Compact size.
  • Offers great performance and value for money.
  • Smooth throttle response for best RC experience.

Specifications:

Model

A2212

Motor KV (RPM/V)

1400

LiPo Batteries

2S-3S

Shaft Diameter (mm)

3.17

Maximum Efficiency

80%

Current Handling Capacity

16A/60S

No-Load Current

0.7A @10V

Max. Efficiency Current

4-10A (>75%)

Length (mm)

30

Width (mm)

27.5

Weight (gm)

48

Minimum ESC Specification

18A (30A Suggested)

Thrust @ 3S with 1045 propeller

1000 gms approx

Thrust @ 3S with 9045 propeller

650 gms approx

Thrust @ 3S with 0845 propeller

550 gms approx


Applications :

  • Drones
  • Quadcopters
  • Multirotors
  • RC Airplanes
  • UAV

Package Includes :

  • 1 x A2212 1400Kv Brushless Motor for Drone
  • 1 x Prop Adapter
