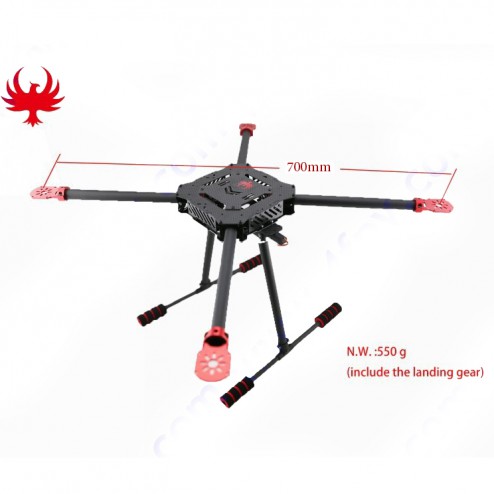

This quad copter frame made by full carbon fiber. Specialy with big space inside of the center plates. Non slip of the aluminium tube locker design. The most specialy is the smallest after it folded.
Specification:
G.W.: 390g (W/O landing gear)
Carbon fiber plate Thickness : 1.5mm
Tube Diam: 18mm
Diagonal : 650mm or less.
Max props: 15 inches.Motors: support max outside diam : 53mm.
Recommend :
Motor: 4110 KV340,
Props: 15inches,
Power : Lipo 6S 6000mAh
ESC : 4 in 1 ESC 30A Or 30A
Flight controller : Naza Lite + GPS or Naza V2, APM ...
Parts List :
Center top plate: 1
Center bottom plate : 1
18mm carbon fiber tube : 4
Motor mount : 4
Gimbals mount : 1
Aluminum standoffs : 4 (30mm)
Aluminum standoffs : 4 (70mm)
M3 * 8 screws : 16,
M2.5*8 screws: 24,
Tarot electric tractable Ladning gear set : 1 set.
