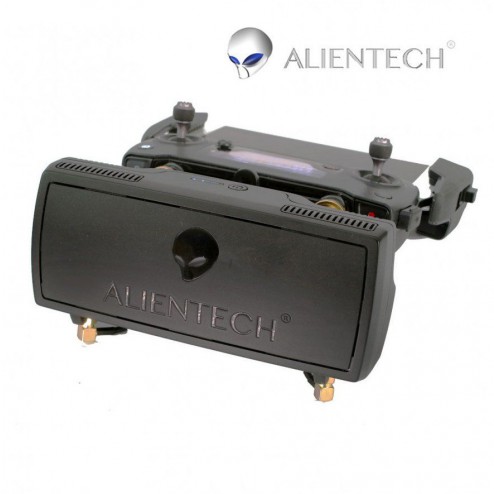

The ALENTECH PLUS can install to most DJI products that which include: DJI SPARK / MAVIC PRO / PHANTOM 3ADVANCED / 3PRO / 4 / 4ADVANCED / 4PRO / INSPIRE 1 / 2 / M200 / 600 and more than including transmit power is 2.4G products.
We believe ALENTECH Signal Booster Plus amid makes an edge tool for your drones that Anti interference and stable transmission and secure flight protection. controllable distance of more than 10 kilometers. 100% do not damage your remote control installation also pluy and play. Battery can be replaced at any time, full of electricity, can work continuously for more than 5 hours.
DESCRIPTIONS
Product specifications:
▲ work frequency band: 2.4 ~ 2.5GHz
▲ working voltage: 7.5V
▲ Receive gain: 10dB ± 1
▲ Transmit gain: 15dB ± 1
▲ input power range: 3 ~ 20dBm
▲ Maximum output power (P1dB): 4W (36dBm)
▲ EVM: 3% @ 28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
▲ operating current: 435mA @ Pout 28dBm 9V
▲ noise figure: ≤ 2.5dB
▲ transmission delay: ≤ 1us
▲ Operating temperature: -40 ℃ ~ 80 ℃
