موتور براشلس
توصیف
جزییات

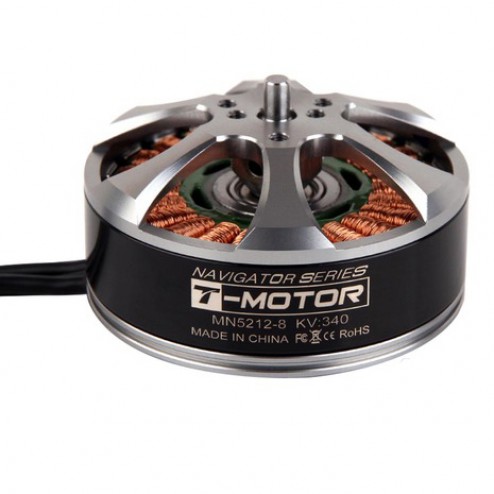

Designed specifically for multi-rotors, the Navigator Series from Tiger Motors includes some of the best multi-rotor motors available today.
The Multi-hole design allow almost any type of prop to be mounted to the motor.
Specifications:
KV: 340
Configu ration: 24N22P
Stator Diameter: 52mm
Stator Length: 12mm
Shaft Diameter: 6mm
Motor Dimensions(Dia.*Len): Φ59×33.5mm
Weight (g): 205g
ldle current(10)@10v(A): 1.1A
No.of Cells(Lipo): 4-8S
Max Continuous current(A)180S: 35A
Max Continuous Power(W)180S: 840W
Max. efficiency current: (5-12A)>83%
internal resistance: 69mΩ
Configu ration: 24N22P
Stator Diameter: 52mm
Stator Length: 12mm
Shaft Diameter: 6mm
Motor Dimensions(Dia.*Len): Φ59×33.5mm
Weight (g): 205g
ldle current(10)@10v(A): 1.1A
No.of Cells(Lipo): 4-8S
Max Continuous current(A)180S: 35A
Max Continuous Power(W)180S: 840W
Max. efficiency current: (5-12A)>83%
internal resistance: 69mΩ
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | T-MOTOR |
|---|
