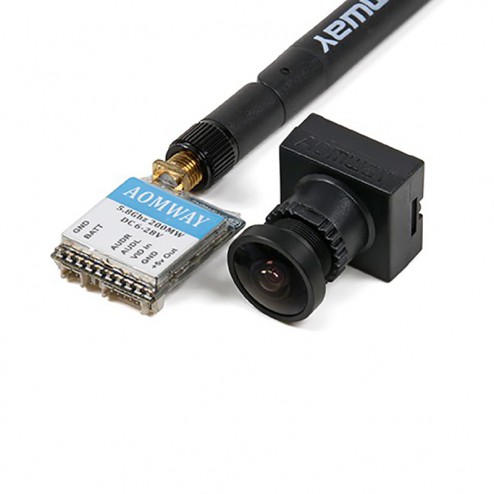

Amoway Micro V2 200mW 32CH 5.8GHz Video Transmitter ( 6~28v ) and 700TVL CMOS HD Camera (NTSC)
The Aomway Micro V2 video transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio package! A must have for those looking to save size and weight whilst still getting good performance.
The Aomway V2 has been upgraded to include the raceband channels (5658~5917MHz) and will now also accept up to 28V while still only weighing 6g. It’s perfect for a wide range of aircraft, especially small models and 250 size racing drones and multi-rotors such as the Quanum Nova, DJI Phantom, QR X350 and more.
Included is the Aomway 700TVL CMOS HD FPV camera which makes this the perfect package for FPV flying. This high definition camera has been specially designed for FPV use, it is lightweight, has 700TVL resolution and operates on the NTSC video system.
Features (VTX):
• Micro sized and light weight - perfect for use with small models and racing drones
• Stereo audio transmits left and right channels separately
• 32 channels: Covers A, B, C and D bands
• Single button frequency adjustment
• Digital display (shows frequency letter)
• Transmitter frequency: 5658-5945MHz
• Includes Racebands 5658/5695/5732/5769/5806/5843/5880/5917MHz
• Transmitting distance > 1500m + in open areas
Features (Camera):
• High definition
• Small and lightweight
• Specially designed for FPV flying
Specs (VTX):
Modulation: Wideband FM
Video Format: NTSC
Output Impedance: 50 Ohm
Output Power: 23dBm
Channel: 32CH
Operating Voltage: 6V~28V
Supply Current: 200mA @ 12V
Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Connector: SMA (NOT RP)
Dimension: 26mm x 23mm x 8mm
Weight: 6g (without antenna)
Specs (Camera):
Video Format: NTSC
Pick Up Device:1/3"COMS
Picture Elements: 976(H) x 496 (V)
Output Power: 23~24dBm
Operating Voltage: 6V~28V
Power consumption:120mA
Dimension: 22mm x 20mm
Weight: 12g
Lens: 2.1mm
TV system : NTSC
Horizontal resolution: 700TVL
S/N Ratio:>=45d
Sensitivity: 10.8 (V/Lux.sec)
Scanning system : 2:1 interlace
All Up Weight: 35g including camera, transmitter and antenna.
