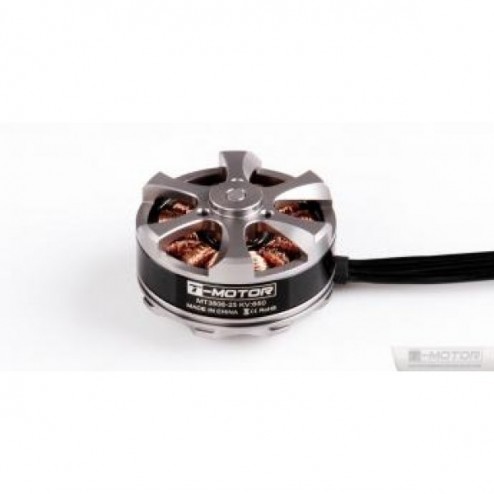

T-MOTOR MT3506 KV650 High-Performance Brushless Electric Motor for Multi-Rotor Aircraft
Specifications:
KV................................................................................................................650
Configu ration...................................................................................12N14P
Stator Diameter...................................................................................35mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................4mm
Motor Dimensions(Dia.*Len)............................................Φ41.5×23.2mm
Weight (g)...................................................................................................70g
ldle current(10)@10v(A).........................................................................0.2A
No.of Cells(Lipo).....................................................................................3-4S
Max Continuous current(A)180S.........................................................14.5A
Max Continuous Power(W)180S.........................................................260W
Max. efficiency current.................................................................(4-9A)>84%
internal resistance..............................................................................155mΩ
توضیحات اضافی
اطلاعات اضافی
| تولید کننده | T-MOTOR |
|---|
