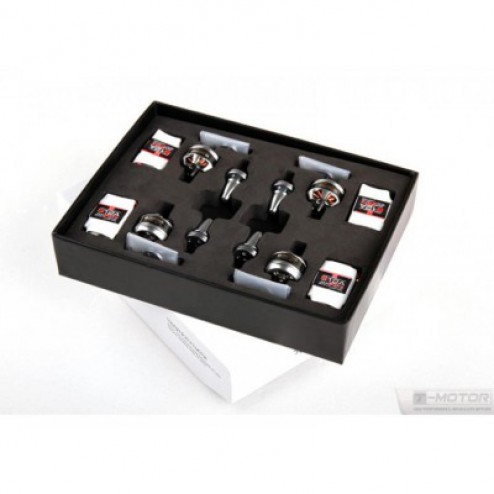

Details The 1806 Combo Pack showcases the quality that Tiger Motors is known for. These motors and ESC's were selected specifically for quadcopters and sold together at a discount. This combo includes: 4x MN1806, 2300KV Motors 4x S12A ESC's
KV..............................................................................................................2300
Configuration....................................................................................12N14P
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................2mm
Motor Dimensions(Dia.*Len)...............................................Φ23×18.5mm
Weight (g)...................................................................................................18g
ldle current(10)@10v(A)..........................................................................0.6A
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)180S............................................................14A
Max Continuous Power(W)180S.........................................................150W
Max. efficiency current.................................................................(3-8A)>83%
internal resistance..............................................................................117mΩ
